Window FEP Tube FEP Sheet High Insulation , Temperature Resistant
Quick Detail:
1. Material: FEP
2. FEP resistant to all solvent
3. temperature resistant
4. high insulation
5. corrosion resistant
6. voltage resistant
7. abrasion resistant
Description:

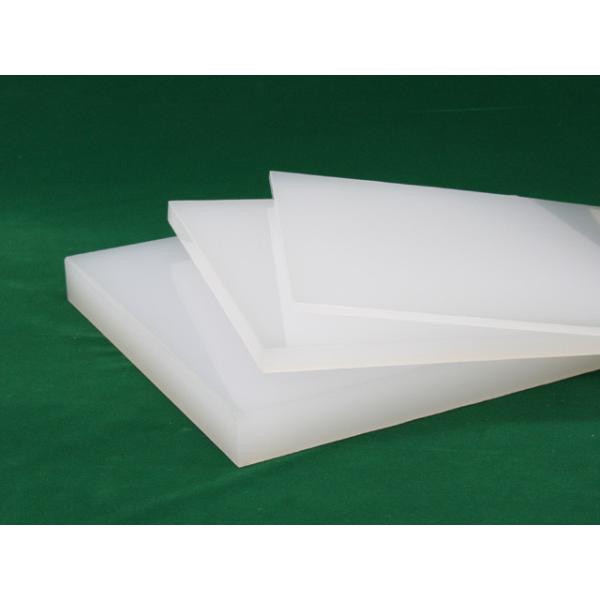

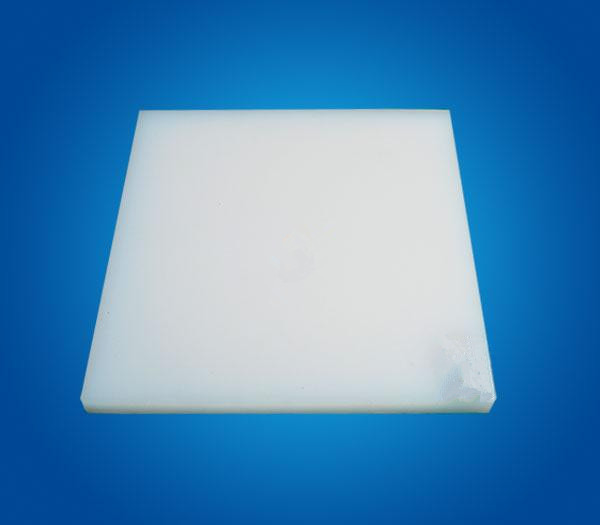

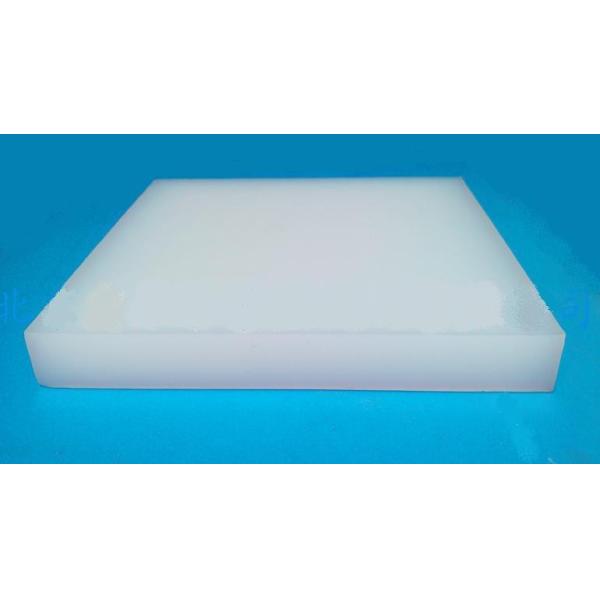

FEP sheet is made from FEP resin and prepared by the technology of molding. FEP sheet remains
basically the properties of PTFE, like excellent high- low-temperature resistance, chemical stability,
dielectricity, high non-adhesiveness and mechanical strength.it can be machined into various sealing
parts and electric components.
It can be used as sealing part, wear-resistant component and electric component under the condition
of high frequency and corrosive media at the temperature of -80 through +200. FEP sheets are
produced in two different forms, which are molding sheets and skived sheets. Molding sheets are made
from PTFE suspension resins. And lathed sheets are made from semi-finished PTFE materials.
Applications:
1.Agglutinant
2.electric iron board producing
3.F4 wax cloth belt, transmission belt combining adhibiting
4.F4 copper board inner adhibiting
5.Window
6.Electroanalysis
7.High temperature tape raw material
8.Capacitance raw material
9.Biology temperature protecting material
10.Non-metal compensator in thermo-eletric plant
11.Flameproof electric machinery
12.Surface protecting material
Specifications:
|
Main technical indicators of FEP sheet: |
||
|
Indicator |
Unit |
Indicator figure |
|
|
|
Rod, sheet |
|
Density |
g/cm3 |
2.14-2.17 |
|
Tensile strength |
Mpa |
20 |
|
Ultimate elongation |
% |
200 |
|
Temperature range |
° C |
- 196-200 |
|
Bioelectricity strength |
Kv/mm |
15 |
|
Specification and application of FEP sheets: |
||
|
Type |
Thickness(mm) |
Width(mm) |
|
Molded sheet |
1_50 |
100_400 |
|
Extruded sheet |
0.05_0.5 |
≤ 500 |
|
|
|
|
|
Length(mm)× Width(mm) |
Thickness(mm) |
|
|
|
Nominal |
Tolerance |
|
150× 150 |
1.0-30 |
± 0.30-± 0.50 |
|
250× 250 |
1.5-30 |
± 0.30-± 0.50 |
|
300× 300 |
1.5-30 |
± 0.30-± 0.50 |
|
450× 450 |
1.5-30 |
± 0.30-± 0.50 |
|
600× 600 |
2-30 |
± 0.30-± 0.50 |
|
800× 800 |
3-30 |
± 0.30-± 0.50 |
|
1000× 1000 |
3-30 |
± 0.30-± 0.50 |
|
1200× 1200 |
3-30 |
± 0.30-± 0.50 |
|
1000× 2000 |
5-35 |
± 0.30-± 0.60 |
|
1500× 1500 |
5-30 |
± 0.30-± 0.50 |
|
1800× 1800 |
8-30 |
± 0.30-± 0.50 |
|
2000× 2000 |
8-30 |
± 0.30-± 0 |
|
1000× 1000 |
3-30 |
± 0.30-± 0.50 |
|
1200× 1200 |
3-30 |
± 0.30-± 0.50 |
|
1000× 2000 |
5-35 |
± 0.30-± 0.60 |
|
1500× 1500 |
5-30 |
± 0.30-± 0.50 |
|
1800× 1800 |
8-30 |
± 0.30-± 0.50 |
|
2000× 2000 |
|
|
|
. 50 |
|
|
Remarks:
We can also produce high quality FEP sheet in other sizes and thickness according to customer's specific
requirements.
Competitive Advantage:
1.Excellent Chemical property
2.Virgin and recycled materials available
3.Any sizes available
4.Fast Usually
