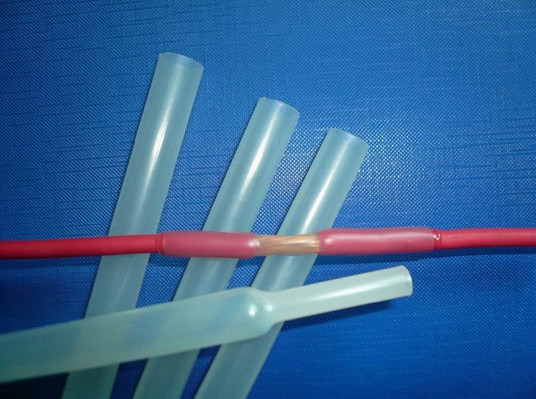

Protecting PTFE Tube , PTFE Heat Shrink Tubing
Quick Detail:
1. Continuous operating temperature -454°F to 500°F (-270°C to 260°C)
2. Outstanding resistance to almost any chemical known
3. Very low coefficient of friction
4. Good dielectric strength
5. Limiting Oxygen Index greater than 95
6. ETO and autoclave sterilizable
7. Flat and tidy surface, no defects, crevices and separations
8. Low minimum order quantity
9. Good services
Description:
PTFE Shrink Tubing is available in 2:1 and 4:1 shrink ratios, and is widely used in military
applications because of its high continuous use temperature (250°C), and outstanding chemical
resistance.
PTFE Shrink Tubing is the most difficult of the three fluoropolymer materials to shrink due to
its extremely high shrinking temperature (325-340°C). You can use a heat gun or welding torch to
shrink PTFE, but these methods have a tendency to cause the material to overheat in small areas,
while under-heating other areas, causing uneven shrinking and potential burning of the material.
The most reliable method for shrinking PTFE is the use of a controlled temperature oven;
however this is impractical with large harnesses or temperature sensitive components.
PTFE heat-shrink sleeves are made from pure virgin PTFE with no fillers or additives and therefore
offer all the exceptional properties of PTFE. The major characteristic is a upper continuous working
temperature of 260° C. This exceeds that of any other heat-shrink polymer. In addition it is completely
resistant to virtually all chemicals, and UV radiation. It is available in 4:1 and 2:1 shrink ratios, and the
shrinking temperature is 327° C.
Applications:
PTFE sleeves are mainly used in various electric cable, electric wire, protecting cover, inner liner
pipes for corrosive fluids and gas, heat exchange machine tube and fluids meter tube.
Specifications:
|
Dimensions, Shrink Ratio 2:1 |
||
|
As supplied ID (mm) |
After recovered ID(mm) |
Wall thickness (mm) |
|
0.86 |
0.38 |
0.23 |
|
0.97 |
0.46 |
0.23 |
|
1.17 |
0.56 |
0.23 |
|
1.27 |
0.64 |
0.25 |
|
1.4 |
0.8 |
0.25 |
|
1.5 |
1 |
0.25 |
|
1.6 |
1.1 |
0.3 |
|
1.9 |
1.2 |
0.3 |
|
2.3 |
1.5 |
0.3 |
|
3 |
1.8 |
0.3 |
|
3.8 |
2.2 |
0.3 |
|
4.8 |
2.8 |
0.3 |
|
6.1 |
3.6 |
0.38 |
|
7.6 |
4.4 |
0.38 |
|
9.4 |
5.5 |
0.38 |
|
10.9 |
6.9 |
0.38 |
|
Dimensions, shrink ratio 4:1 |
||
|
As supplied ID (mm) |
After recoved ID (mm) |
Wall thickness (mm) |
|
2 |
0.64 |
0.22 |
|
3.2 |
0.94 |
0.25 |
|
4.8 |
1.27 |
0.3 |
|
6.4 |
1.6 |
0.3 |
|
8 |
2 |
0.3 |
|
9.5 |
2.4 |
0.3 |
|
11.1 |
2.8 |
0.3 |
|
12.5 |
3.6 |
0.38 |
|
14.3 |
3.9 |
0.38 |
|
15.8 |
4.5 |
0.38 |
|
17.5 |
5 |
0.38 |
|
19 |
5.7 |
0.38 |
|
22.2 |
6.2 |
0.38 |
|
25.4 |
7 |
0.38 |
|
31.7 |
8.8 |
0.38 |
|
38.1 |
10.2 |
0.38 |
Remarks:
PTFE heat shrink tubings are available in other sizes and thickness according to customer's
specific requirements.
Competitive Advantage:
1.Excellent Chemical property
2.Virgin and recycled materials available
3.Any sizes available
4.Fast Usually
