Natural White Polytetrafluoroethylene PTFE / Glass Filled PTFE
Quick Detail:
seal liner and lubricant material in kinds of medium, especially corrosive situation;
dielectric material in kinds of frequency;
Virgin and recycled materials available
Made of molding power
Temperature : -180--260°c
Stretch strength : >15Mpa
Break elongation rate :200%
Description:

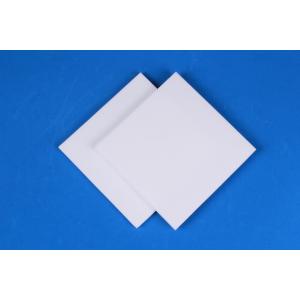

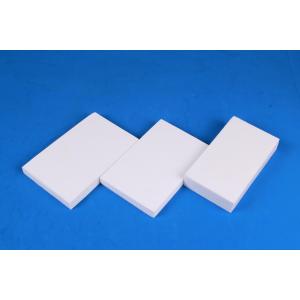

Molded PTFE sheet is manufactured by molding process with PTFE granular resin and sintering.
It has a wide range of practicable temperature from -180C~+260C and a wax-like surface to which
anything hardly sticks. Molded sheet has the lowest coefficient of friction of all known solid materials.
Molded Blocks has the best electrical properties of all plastic.It is very suitable for seals,linings,
diaphragm,scraper guide and bearing pad for bridge.
Applications:
1. Seals and gaskets
2. Valve and fitting components
3. Pump parts
4. Manifolds
5. Semiconductor equipment
6. Scientific equipment
7. Medical equipment
8. Chemical resistant tubing
9. Capacitor dielectric
10. wire isolation
11. electrical instrument isolation
Specifications:
|
Project Name |
Unit |
Result |
|
Apparent Density |
g/cm3 |
2.1 ~ 2.3 |
|
Tensile Strength |
Mpa |
≥ 14.0 |
|
Ultimate Elongation |
% |
≥ 150 |
|
Thick( mm ) |
1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 14, 15, 16, |
|
|
18, 19, 20, 22, 24, 25, 26, 28, 30, 35, 40, 50 |
||
|
Width ( mm ) |
100mm, 300mm, 1000mm, 1220mm |
|
|
length ( mm ) |
100mm, 300mm, 1000mm, 1220mm, 2000mm |
|
STOCK DIMENSION:
|
1220mm x 1220mm |
1000mm x 1000mm |
||
|
Thickness ( mm ) |
Weight |
Thickness ( mm ) |
Weight |
|
1.0mm |
3.42kg |
1.0mm |
2.30kg |
|
2.0mm |
6.85kg |
2.0mm |
4.60kg |
|
2.5mm |
8.56kg |
2.5mm |
5.75kg |
|
3.0mm |
10.27kg |
3.0mm |
6.90kg |
|
4.0mm |
13.69kg |
4.0mm |
9.20kg |
Remarks:
Molded PTFE sheets are available in other sizes and thickness according to customer's specific
requirements.
Competitive Advantage:
1.Excellent Chemical property
2.Virgin and recycled materials available
3.Any sizes available
4.Fast Usually
