Quick Detail:
1. Length :100mm--3000mm or as your requirements
2. Diameters : 5mm-300mm
3. High chemical resistance
4. High temperature resistance
5. Long durability
6. Self lubricating
7. Non-contaminating
8. With high quality and competitive price
9. Any sizes available
Description:

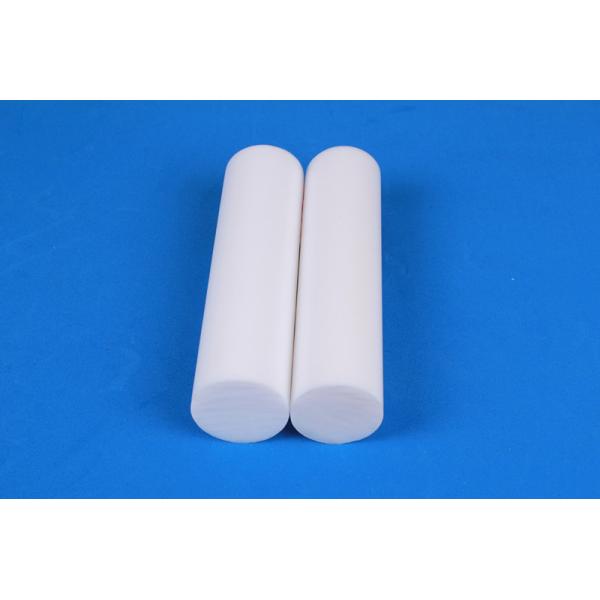

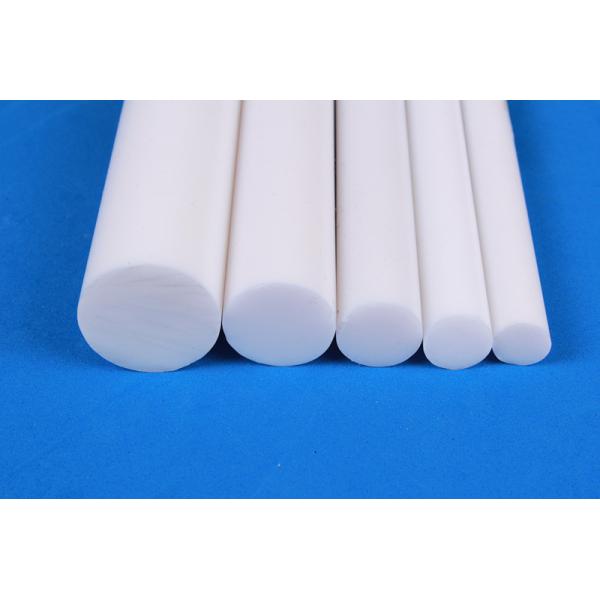

PTFE rod is manufactured by technics of paste extruding and ram extruding method in
the diameter from 5 to 300mm with PTFE granular resin. As PTFE has a very low co-efficient of friction,
so the surface of extruded PTFE rod has similar friction levels to ice. Extruded PTFE rod
can work at -180°C ～+260°C and is the best electrical insulator of all known plastics.
PTFE Rod is available in both virgin grades and reprocessed (mechanical) for less demanding
applications.
Applications:
Note:All ptfe rods can be etched for bonding, and can be mounted on a plywood disk for less waste in
machining. Also can be made with filled (reinforced) PTFE to enhance the performance parameters of
PTFE. Materials available for reinforcement are Glass Fiber, Graphite, Bronze we can do.
Specifications:
|
Property |
Unit |
Result |
|
Apparent Density |
g/cm3 |
2.10-2.30 |
|
Tensile Strength ≥ |
MPa |
≥14 |
|
Crack Elongation ≥ |
% |
≥150 |
|
Working Temperature |
°C |
-180°C ~ + 260°C |
|
Diameter(mm) |
Length(mm) |
||
|
Nominal |
Tolerance |
Nominal |
Tolerance |
|
5,6 |
+0.480 |
100 |
+5.0 |
|
7,8,9 |
+0.580 |
100 |
+5.0 |
|
10,13,15,16,18 |
+1.100 |
100,1000 |
+3.60 |
|
20,25,30 |
+1.130 |
100,1000 |
+3.60 |
|
35,40,45,50 |
+1.600 |
100,1000 |
+3.60 |
|
55,60,65,70,75,80,85,90,100 |
+2.000 |
100,1000 |
+2.50 |
|
110,120 |
+2.500 |
100,1000 |
+2.50 |
Remarks:
PTFE rods are available in other sizes and thickness according to customer's
specific requirements.
Competitive Advantage:
1. Excellent Chemical property
2. Virgin and recycled materials available
3. Any sizes available
4. Fast Usually
