Black PTFE Tubing / PTFE Material For Heat Exchanger
Quick Detail:
1.Length :100mm--3000mm or as your requirements
2.Diameters : 0.5mm-1800mm
3.High chemical resistance
4.High temperature resistance
5.Long durability
6.Self lubricating
7. Non-contaminating
8.With high quality and competitive price
9.Color:natural white,red,yellow,black and so on.
10.Surfact:smooth,no impurities,no black spot
11.Any sizes available
Description:

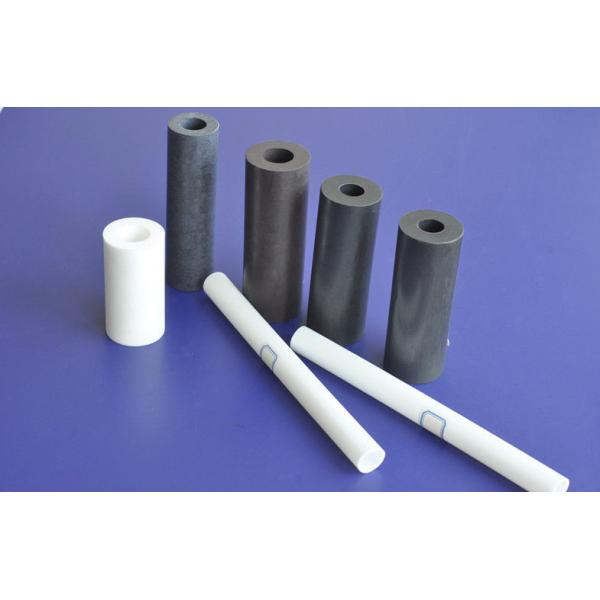

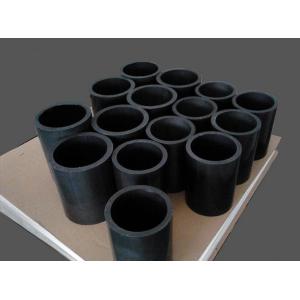

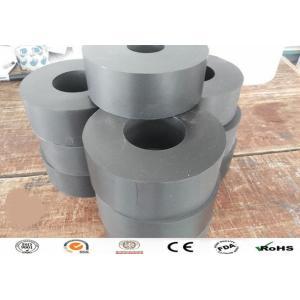

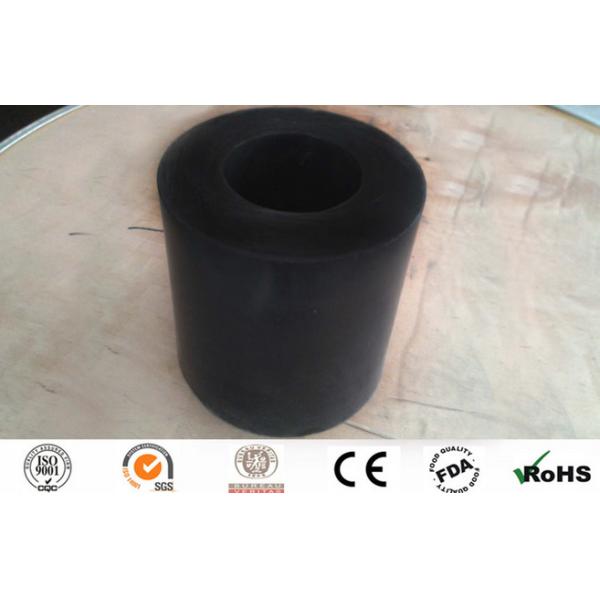

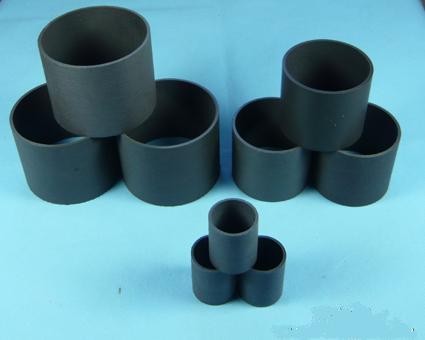

Filled PTFE tube is manufactured by technics of molding method in the diameter from 0.5mm to
1800mm with PTFE granular resin. As PTFE has a very low co-efficient of friction, so the surface of
filled PTFE tube has similar friction levels to ice. Filled PTFE tube can work at
-180°C ～+260°C and is the best electrical insulator of all known plastics.
Filled PTFE tube has strong corrosion resistance and friction-resistance,By adding filler such
as glass fiber,carbon fiber,copper powder,graphite,asbestos,MOS2,AL2O3,carbon powder,ceramic
fiber,metal powder,polyamide,PS,the hardness,compression strength and abrasion resistance of the
products is improved ,in addition,it will have good heat conductivity and low heat expansion coefficient
|
Glass Fiber: |
Increases compressive strength, rigidity and wear. |
|
Carbon: |
Increases compressive strength, hardness, wear, and load properties. |
|
Graphite: |
Reduces coefficient of friction |
|
Molybdenum Disulfide: |
Increases hardness, stiffness, and wear |
|
Bronze: |
Increases hardness and wear resistance |
Applications:
Filled PTFE tube can be used as wire and cable jacket, inner lined pipes for corrosive fluids and
used in hydrochloric acid heat exchanger, etc.
Specifications:
|
Property |
Unit |
Result |
|
Apparent Density |
g/cm3 |
2.10-2.30 |
|
Tensile Strength ≥ |
MPa |
≥18 |
|
Crack Elongation ≥ |
% |
≥230 |
|
Working Temperature |
°C |
-180°C ~ + 260°C |
|
Out Diameter |
0.5mm..3mm..20mm...50mm.....200mm.....1000mm, 1800mm |
|
|
Length ( mm ) |
200mm, 300mm |
|
|
Diameter(mm) |
Diameter(mm) |
||
|
OD (mm) |
ID(mm) |
OD(mm) |
ID(mm) |
|
0.8 |
0.4 |
90 |
60 |
|
1 |
0.5 |
120 |
80 |
|
4 |
2 |
140 |
120 |
|
6 |
4 |
160 |
130 |
|
10 |
8 |
180 |
150 |
|
12 |
10 |
200 |
180 |
|
18 |
16 |
250 |
200 |
Remarks:
Filled PTFE tubes are available in other sizes and thickness according to customer's specific
requirements.
Competitive Advantage:
1.Excellent Chemical property
2.Virgin and recycled materials available
3.Any sizes available
4.Fast Usually
