Self-lubrication UHMWPE Tube Anti-corrosion With Strong Agglutination
Quick Detail:
1.Extremely high wear resistance
2.Very high impact resistance
3.Corrosion resistance
4.Good self-lubrication
5.The unique resistance to low temperature
6.Not easy to form dirt
7.Long life-span
8.Easy installation
Description:

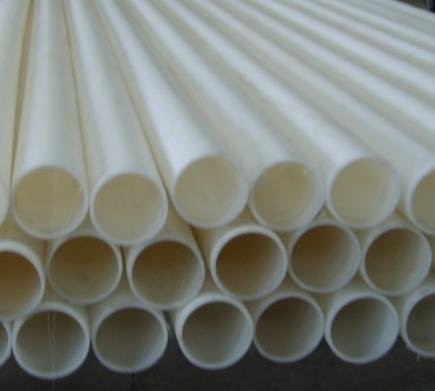

UHMW-PE Tube is a new development in pipes.In the transportation of particle,powder,corrosive liquid
and gas,it's the premier selection.Otherwise,Dunone can manufacture intricate parts such as paddle,
wear strips,nozzles,oil tank ect.
UHMW-PE pipes have excellent abrasion resistance providing long life in abrasive slurry
Applications:
UHMW-PE pipes can be bent to a minimum of 30 times the pipe’s outside diameter for HDPE. This flexibility
and resiliency allows the pipe to absorb surge pressures, vibration and stresses caused by soil movement.
This makes the pipes particularly useful in submarine pipe lines, mine subsidence and earthquake prone
areas
Applications:
UHMW-PE tubes are applied to transport portable water in the urban area and are also used to distribute
water for irrigation and spray irrigation. UHMW-PE tube can be used for other industrial purposes by means
of transporting chemicals, acid and corrosive solution, corrosive waste water, sewage, drainage pressure,
slag, mud and salt water, etc. They are also applicable for other fields such as waste disposal, power plant,
telecommunications, heating, air conditioning and aquaculture.
Specifications:
|
DN(mm) |
0.4MPa |
0.6MPa |
0.8MPa |
1MPa |
1.25MPa |
1.65MPa |
2.0MPa |
|
thickness mm |
thickness mm |
thickness mm |
thickness mm |
thickness mm |
thickness mm |
mm thickness |
|
|
110 |
|
|
4.7 |
6.0 |
7.4 |
9.2 |
11.4 |
|
125 |
|
|
5.4 |
6.7 |
8.3 |
10.3 |
12.7 |
|
140 |
|
|
6.0 |
7.7 |
9.5 |
11.8 |
14.6 |
|
160 |
|
5.2 |
6.9 |
8.6 |
10.7 |
13.3 |
16.4 |
|
180 |
|
5.9 |
7.7 |
9.6 |
11.9 |
14.7 |
18.2 |
|
219 |
|
6.5 |
8.6 |
10.8 |
13.4 |
16.6 |
20.5 |
|
225 |
4.9 |
7.3 |
9.7 |
11.9 |
14.8 |
18.4 |
22.7 |
|
250 |
5.5 |
8.1 |
10.7 |
13.4 |
16.6 |
20.6 |
25.4 |
|
280 |
6.2 |
9.1 |
12.0 |
15.0 |
18.7 |
23.2 |
28.6 |
|
315 |
6.9 |
10.2 |
13.5 |
16.9 |
21.1 |
26.1 |
32.2 |
|
350 |
7.8 |
11.5 |
15.3 |
19.1 |
23.7 |
29.4 |
36.3 |
Remarks:
UHMW-PE tubes are available in other size according to customer's requirement.
Competitive Advantage:
1.Excellent Chemical property
2.Virgin and recycled materials available
3.Any sizes available
4.Fast Usually
