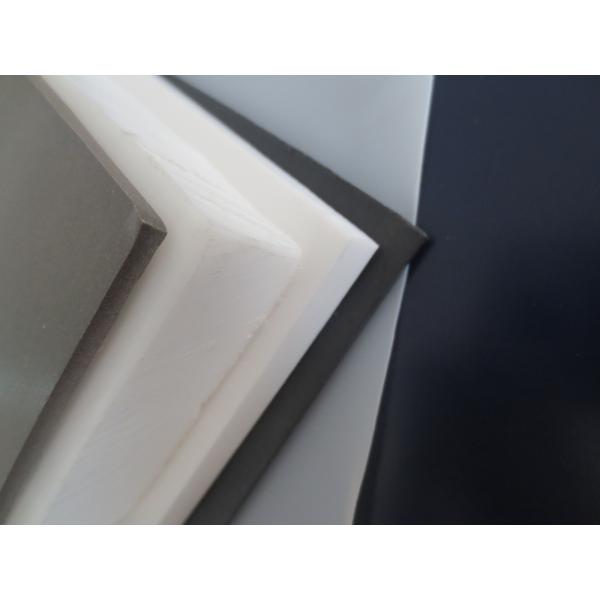

Chemical Resistance Filled PTFE Sheet Graphite / Fiberglass Filled
Quick Detail:
Material: Graphite Filled, Fiberglass Filled, Bronze Filled, Carbon.Filled etc.
Style: Filled PTFE sheet
Thickness: 1.0mm ~ 100mm
Width: 150mm ~ 2000mm
Density: 2.1 ~ 2.3 g/cm3
Temp: -180°C ~ + 260°C
Description:
Filled PTFE sheet is manufactured by technics of molding with PTFE granular resin. As PTFE has
a very low co-efficient of friction, so the surface of molded PTFE sheet has similar friction levels
to ice. Filled PTFE sheet can work at -180°C ～+260°C and is the best electrical insulator of all
known plastics.Filled PTFE sheet has strong corrosion resistance and friction-resistance,By adding
filler such as glass fiber,carbon fiber,copper powder,graphite,asbestos,MOS2,AL2O3,carbon powder,
ceramic fiber,metal powder,polyamide,PS,the hardness,compression strength and abrasion resistance
of the products is improved ,in addition,it will have good heat conductivity and low heat expansion
coefficient
|
Glass Fiber: |
Increases compressive strength, rigidity and wear. |
|
Carbon: |
Increases compressive strength, hardness, wear, and load properties. |
|
Graphite: |
Reduces coefficient of friction |
|
Molybdenum Disulfide: |
Increases hardness, stiffness, and wear |
|
Bronze: |
Increases hardness and wear resistance |
Applications:
1.Seals and gaskets
2. Valve and fitting components
3. Pump parts
4. Manifolds
5. Semiconductor equipment
6. Scientific equipment
7. Medical equipment
8. Chemical resistant tubing
9. Capacitor dielectric
10.wire isolation
11.electrical instrument isolation
Specifications:
|
Project Name |
Unit |
Result |
|
Apparent Density |
g/cm3 |
2.1 ~ 2.3 |
|
Tensile Strength |
Mpa |
≥ 14.0 |
|
Ultimate Elongation |
% |
≥ 150 |
|
Thick( mm ) |
1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 14, 15, 16, |
|
|
18, 19, 20, 22, 24, 25, 26, 28, 30, 35, 40, 50 |
||
|
Width ( mm ) |
100mm, 300mm, 1000mm, 1220mm |
|
|
length ( mm ) |
100mm, 300mm, 1000mm, 1220mm, 2000mm |
|
STOCK DIMENSION:
|
1220mm x 1220mm |
1000mm x 1000mm |
||
|
Thickness ( mm ) |
Weight |
Thickness ( mm ) |
Weight |
|
1.0mm |
3.42kg |
1.0mm |
2.30kg |
|
2.0mm |
6.85kg |
2.0mm |
4.60kg |
|
2.5mm |
8.56kg |
2.5mm |
5.75kg |
|
3.0mm |
10.27kg |
3.0mm |
6.90kg |
|
4.0mm |
13.69kg |
4.0mm |
9.20kg |
Remarks:
Filled PTFE sheets are available in other sizes and thickness according to customer's specific
requirements.
Competitive Advantage:
1.Excellent Chemical property
2.Virgin and recycled materials available
3.Any sizes available
4.Fast Usually
