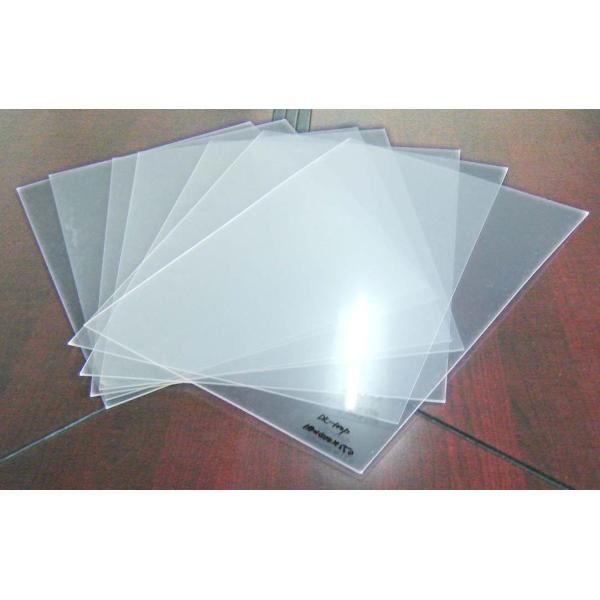

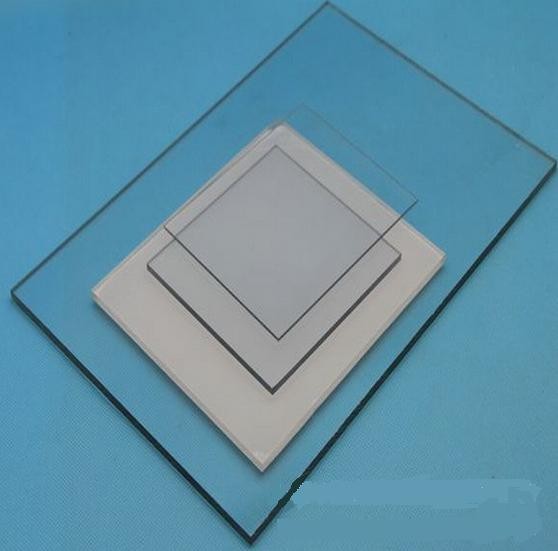

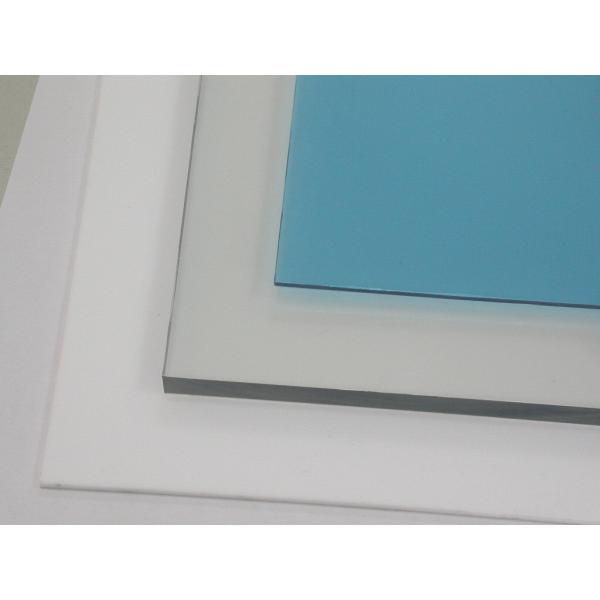

1.2g/cm³ Industrial Engineering Plastics , PC Sheet For Skylights
Quick Detail:
1. High impact resistance, virtually unbreakable
2. High clarity and light transmission
3. Weather and UV resistant
4. Wide service temperature range
5. Good acoustical insulation
6. Easy to handle and install
7. Versatile, formable and machinable
Description:
PC sheet is a continuously processed product which exhibits outstanding optical properties, uniform
thickness and a low stress level. PC sheet is a lightweight, weather-resistant thermo plastic.
It can be easily fabricated, formed, finished, cemented, painted and decorated.
Applications:
1. Skylights
2. Thermoformed and fabricated items
3. Glazing in public buildings
4. Acoustic barriers
5. Signboards and illuminated signitures
6. Safety glazing
Specifications:
1) Item Name: Polycarbonate sheet
2) Thickness: from 1-12mm
3) Size: Max width: 2.1m, no limit on length
4) Color: Clear, Bronze, Blue, Lake-blue, Green, Grass green, White, Red, Grey, Yellow, Purple, Orange,
etc.
|
CHARACTER |
UNIT |
DATE |
|
Specific Gravity |
g/cm³ |
1.2 |
|
Light Transmission |
% |
88 |
|
Impact Strength |
J/m |
850 |
|
Flexural Strength |
N/mm² |
100 |
|
Tensile Strength |
N/mm² |
≥60 |
|
Modulus of Elasticity |
Mpa |
2400 |
|
Tensile Stress at Break |
Mpa |
≥65 |
|
Elongation at Break |
% |
>100 |
|
Specific Heat |
KJ/Kg·K |
1.17 |
|
Heat Conductivity |
W/m²·K |
0.2 |
|
Coefficient of Thermal Expansion |
mm/m·°C |
0.067 |
|
Range of Temperature |
°C |
-40~+120 |
|
Effect of Soundproof |
dB |
33dB decrease for 10mm solid sheet |
Remarks:
PC sheets are available in other size and thickness according to customer's specific drawings or
requirements.
Competitive Advantage:
1.Excellent Chemical property
2.Virgin and recycled materials available
3.Any sizes available
4.Fast Usually
