Sealing PTFE Coated Fiberglass Cloth High Temp Fiberglass Tape
Quick Detail:
1. Minimal Water Absorption
2. Excellent Machining
3. Acid and chemical resistant
4. Good Electrical insulation
5. High working temperatures
6. Low friction
7. Low minimum order quantity
8. Good services
Description:

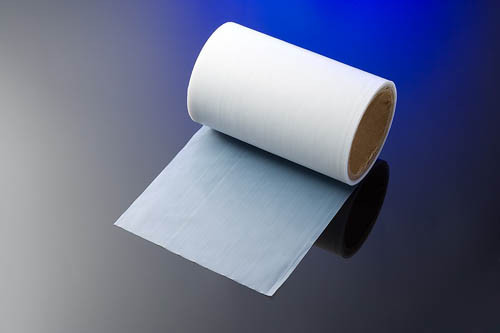

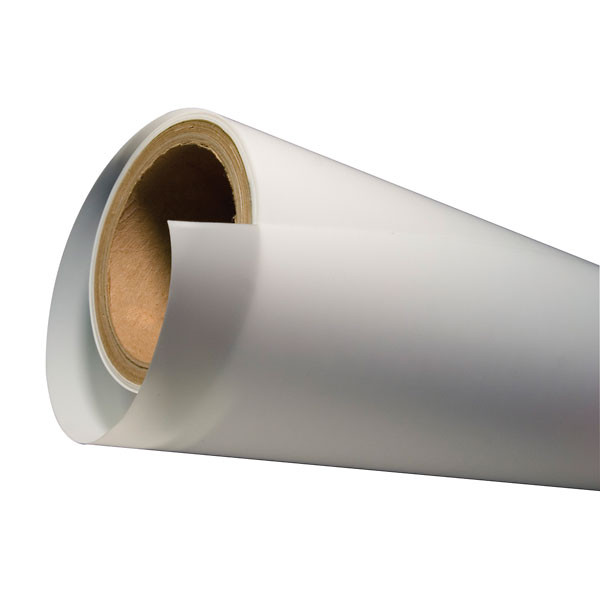

PTFE Film is available in thicknesses from one mil up to 20 mils. Because Fluoro-Plastics uses
the most modern skiving technology, interim thicknesses are available. Film comes in rolls packaged
on a three-inch cardboard core or PVC core from less than one inch wide up to 60 inches wide. Thin
film is widely used in the wire and cable industry as wrap due to its extraordinary insulating ability.
Some specialty PTFE resins can be made into thin film with a breakdown voltage exceeding 2000 volts
per mil. Thin film is also found in capacitors because of its excellent dielectric properties. In addition,
thin film can be used in applications where contamination is an issue, e.g. in many pharmaceutical and
food processing applications.
PTFE Films exhibit the following characteristics: Lowest coefficient of friction of any known material.
PTFE operates up to 500F. Tremendous chemical resistance PTFE is an excellent insulator Limitations:
PTFE has low compressive & tensile strength
Applications:
1. Lining,
2. sealing
3. lubricating material and dielectric at any frequency.
4. Wire insulation,
5. electrical instrument insulation, especially in the fields of making capacitors.
Specifications:
|
Item |
Unit |
High-density |
Semi-density |
Common |
|||
|
Tensile Strength |
MPa |
≥30 |
≥20 |
≥10 |
|||
|
Tear Elongation |
% |
≥30 |
≥60 |
≥100 |
|||
|
1MHz Dielectic Loss Tengent |
|
2.5×10-4 |
-- |
-- |
|||
|
1MHz Dielectic Constant |
|
average 1.8-2.2 |
-- |
-- |
|||
|
DC Breakdown Voltage |
KV/M |
average 200 |
average 60 |
average 30 |
|||
|
PTFE FILM |
|||||||
|
Thickness(MM) |
Width(Mtr) |
Length(Mtr) |
|||||
|
0.5 |
0.3;0.5;1.0;1.2;1.5; |
0.3;0.5;1;1.2;1.5;10;20 |
|||||
|
1 |
0.3;0.5;1.0;1.2;1.5; |
0.3;0.5;1;1.2;1.5;10;20 |
|||||
|
1.5 |
0.3;0.5;1.0;1.2;1.5; |
0.3;0.5;1;1.2;1.5;10;20 |
|||||
|
2 |
0.3;0.5;1.0;1.2;1.5; |
0.3;0.5;1;1.2;1.5;10;20 |
|||||
|
3 |
0.3;0.5;1.0;1.2;1.5; |
0.3;0.5;1;1.2;1.5;10;20 |
|||||
|
4 |
0.3;0.5;1.0;1.2;1.5; |
0.3;0.5;1;1.2;1.5;10 |
|||||
|
5 |
0.3;0.5;1.0;1.2;1.5; |
0.3;0.5;1;1.2;1.5;10 |
|||||
|
6 |
0.3;0.5;1.0;1.2;1.5; |
0.3;0.5;1;1.2;1.5;10 |
|||||
|
8 |
0.3;0.5;1.0;1.2;1.5; |
0.3;0.5;1;1.2;1.5 |
|||||
|
10 |
0.3;0.5;1.0;1.2;1.5; |
0.3;0.5;1;1.2;1.5 |
|||||
|
12 |
0.3;0.5;1.0;1.2;1.22 |
0.3;0.5;1.0;1.2;1.22 |
|||||
|
15 |
0.3;0.5;1.0;1.2;1.22 |
0.3;0.5;1.0;1.2;1.22 |
|||||
|
20 |
0.3;0.5;1.0;1.2;1.22 |
0.3;0.5;1.0;1.2;1.22 |
|||||
|
25 |
0.3;0.5;1.0;1.2;1.22 |
0.3;0.5;1.0;1.2;1.22 |
|||||
|
30 |
0.3;0.5;1.0;1.2;1.22 |
0.3;0.5;1.0;1.2;1.22 |
|||||
|
35 |
0.3;0.5;1.0;1.2;1.22 |
0.3;0.5;1.0;1.2;1.22 |
|||||
|
40 |
0.3;0.5;1.0;1.2;1.22 |
0.3;0.5;1.0;1.2;1.22 |
|||||
|
45 |
0.3;0.5;1.0;1.2;1.22 |
0.3;0.5;1.0;1.2;1.22 |
|||||
|
50 |
0.3;0.5;1.0;1.2;1.22 |
0.3;0.5;1.0;1.2;1.22 |
|||||
Remarks:
PTFE film is available in other sizes and thickness according to customer's requirement.
Competitive Advantage:
1. Excellent Chemical property
2. Virgin and recycled materials available
3. Any sizes available
4. Fast Usually
